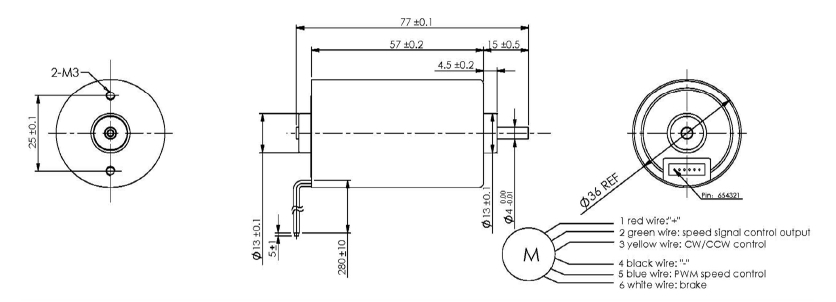

B3657M

Output Power 输出功率: 5W~80W

Weight 重量: 220g (Approx.)

Brushless DC Motor-Typical Application 直流无刷电机-典型应用

Automotive Parts: Pump    汽车部件：泵

Home Application: White Goods, Small Appliance, Fann Coffee Machine,

Milk Tea Machine

家用电器：白色家电，小家电，风扇，咖啡机，奶茶机

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

Centrifugal Machine

医疗器械：医疗泵，手术器械，搅拌器，离心机

Power Tools: Screwdriver, Drill, Air Compressor

电动工具：电动螺丝批，电钻，气体压缩机

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

商业设备：打印机，复印机，投影机，ATM机，售卖机

Personal Care: Hair Dryer, Electric Shaver, Massager

个人护理：风筒，电动须刨，按摩器

Model

型号

电压 Voltage(V)

No Load 空载

Rated Load 额定负载

Stall 堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3657M-S01

8-26

12

3170

0.26

29.4

2460

1.15

7.6

181.5

2.5

B3657M-S02

8-26

12

3100

0.24

40.22

2560

1.31

10.78

215.8

2.5

B3657M-S03

8-26

24

6830

0.34

40.20

6134

1.48

25.80

195.0

2.5

B3657M-S04

8-26

24

26707

0.68

29.43

21132

3.79

65.13

139.47

5.0

B3657M-S05

8-26

24

  4743

0.25

98.00

3486

2.24

35.78

369.87

5.0

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

B3657M-S02                 12V

  B3657M-S05             24V
