D3440M直流电机马达





     D3440M缩略图

    D3440M

    ( DC Motor直流马达)

    Output Power 输出功率10W~35W

    Weight 重量: 160g (Approx.)

    DC Motor - Typical Application 直流电机-典型应用

    Automotive Parts: ABSAnti-lock Brake System

    汽车部件:防抱死刹车系统



    Model

    型号

    (DC Motor直流马达)

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    D3440M

    9~16

    12

    5328

    0.29

    49

    4296

    2.5

    22

    253

    11.8

    Characteristic: Low noise, Low Vibration, High Reliability

    特征:低噪音,低震动,高可靠性

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

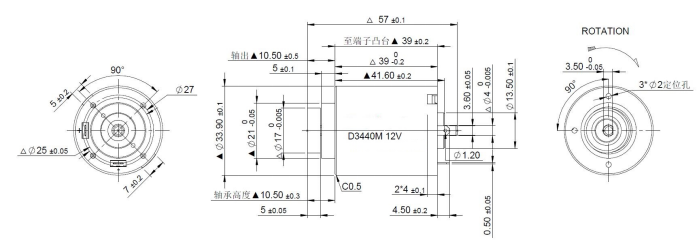

    Outline Drawing 外形图:

    D3440M-S01外形图



    Usable machine screw length 3mm max. from motor mounting surface

      Unit: Millimeter

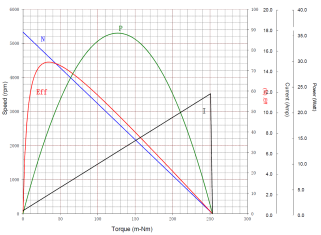

    Performance Curve 性能曲线:

    D3440M-S01     12V





    D3440M-S01曲线图
