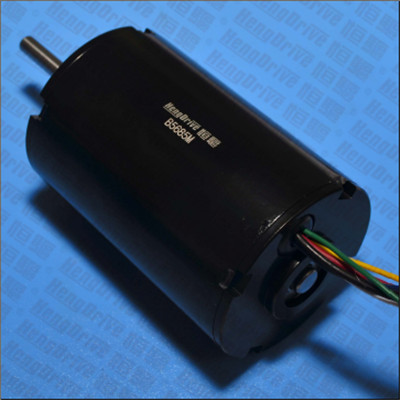

B5685M 无刷电机

  • 所属分类:[全部利来w66直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B5685M

    Output Power 输出功率: 30W~180W

    Weight 重量: 570g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automotive Parts: Pump, Fan, Actuator, Parking Heater

    汽车部件:泵,风机,致动器,驻车加热器

    Home Application: White Goods, Cross-flow Fan, Electric Fan,

    Electric Window & Door, Blender

    家用电器:白色家电、贯流风机、电风扇、电动门窗,搅拌机

    Medical Apparatus: Medical Bed, Electric Wheel Chair, Surgery Tools,

    Operating Table, Centrifugal Machine

    医疗器械:医疗床,电动轮椅,手术器械,手术台,离心机

    Power Tools: Screwdriver, Drill, Air Compressor

    电动工具:电动螺丝批,电钻,气体压缩机

    Business Equipment: ATM, Vending Machine, Shredder

    商业设备:ATM机,售卖机,碎纸机

    Personal Care: Hair Dryer, Massager, Vibrator   个人护理:风筒,按摩器,震动器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B5685M-S01

    8-14

    12

    3760

    0.55

    130

    2966

    3.98

    40.3

    615

    8.0

    B5685M-S02 (N35)

    8-14

    12

    2607

    0.75

    250

    2142

    6.28

    56.1

    1400

    12.0

    B5685M-S03

    8-26

    24

    3651

    0.49

    250

    3273

    4.31

    85.7

    480

    8.0

    B5685M-S04 (N35)

    8-26

    24

    2372

    0.28

    600

    1735

    6.46

    109

    2231

    12.0

    B5685M-S05

    8-26

    24

    6925

    0.75

    265

    5036

    7.29

    140.5

    450

    12.0

    B5685M-S06

    12-40

    36

    4880

    0.53

    300

    3300

    3.66

    103.8

    726

    8.0

    B5685M-S07(N35)

    12-40

    36

    1974

    0.24

    700

    1276

    4.204

    93.5

    1977

    8.0

    B5685M-S08

    226-375DC

    310VDC

    2837

    0.20

    280

    2661

    0.7

    78.01

    4500

    1.5

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

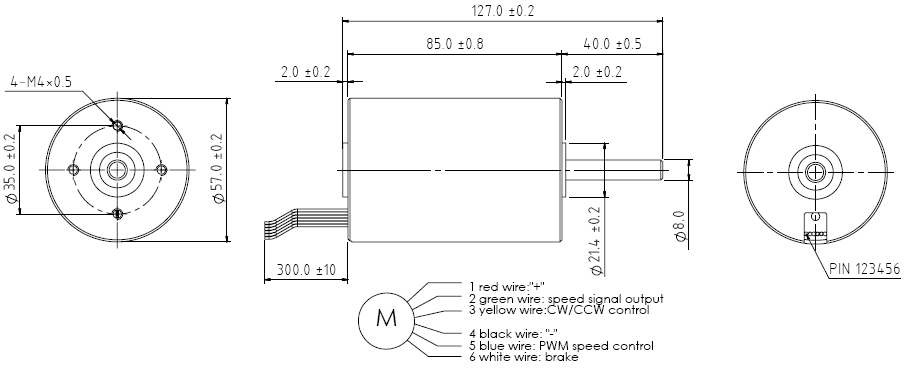

    Outline Drawing 外形图:  Usable machine screw length 6.0mm max from motor mounting surface      Unit: Millimeter

    Performance Curve 性能曲线:

    B5685M-S02                 12V

    B5685M-S03                 24V
