B3020FB 直流无刷风扇

  • 所属分类:[全部利来w66直流无刷电机]
  • 产品简介:特征:单转向,信号功能,锁定保护,低噪音,低电磁干扰,超长寿命70000 min小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B3020FB

    Brushless DC Fan

    Output Power 输出功率: 0.3W~5W

    Weight 重量: 71g (Approx.)

    无刷直流风扇



    3-Phase Brushless DC Fan- Specific for Refrigerator Condenser Fan





    三相无刷直流风扇-专用于电冰箱冷凝风扇



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Starting 起动

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3020FB-S01

    5-12

    12

    3588

    0.068

    5.396

    2560

    0.26

    1.447

    18.84

    0.76

    Characteristic: CW or CCW, Signal function available, Locked rotor protection, Low noise, Low EMI, Long life70000 min hrs   特征:单转向,信号功能,锁定保护,低噪音,低电磁干扰,超长寿命70000 min小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

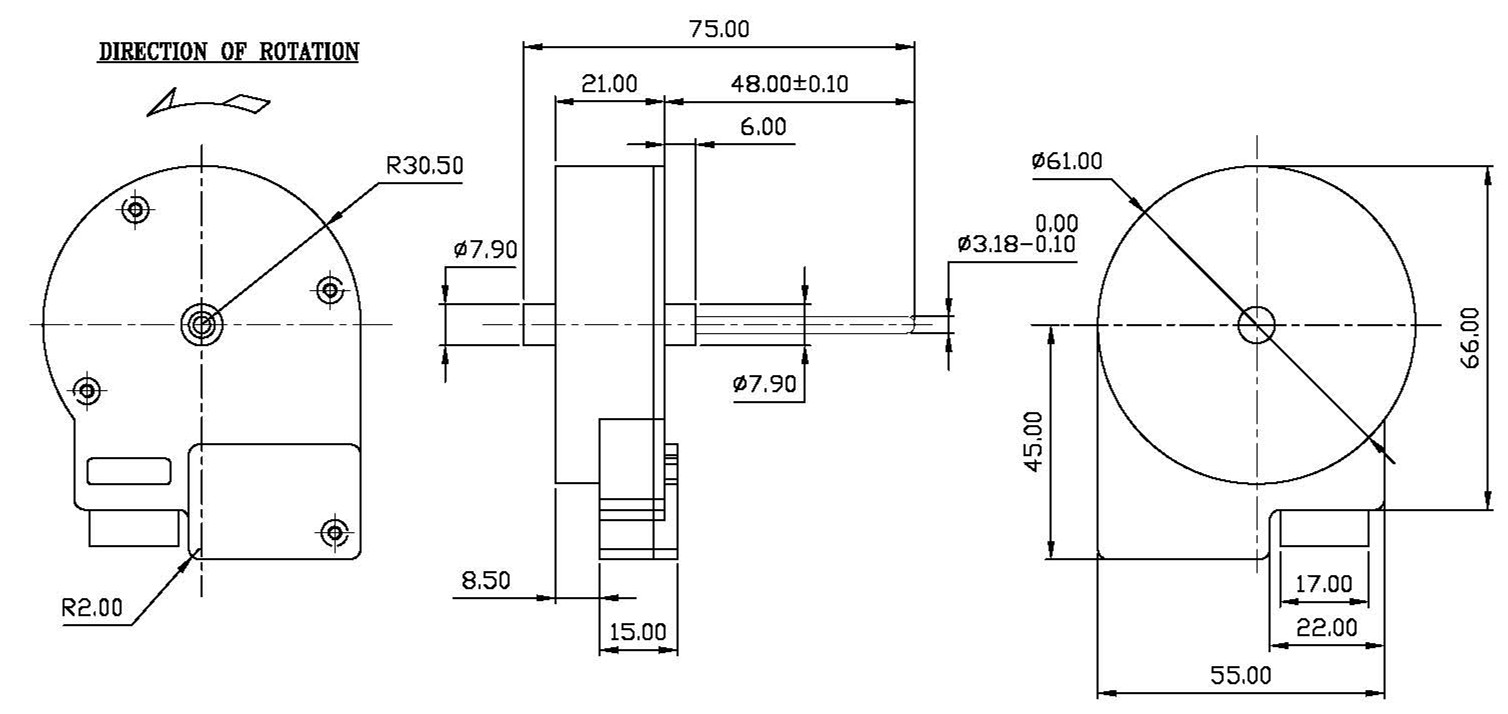

    Outline Drawing 外形图:  (Unit: Millimeter)

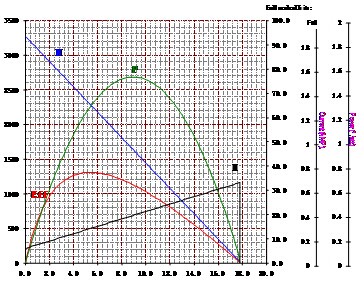

    Performance Curve 性能曲线:

    B3020FB-S01                     12V DC
