B3020S 单相无刷直流电机

  • 所属分类:[全部利来w66直流无刷电机]
  • 产品简介:特征:单转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B3020S

    Outer Rotor

    Output Power 输出功率: 0.1W~1.2W

    Weight 重量: 75g (Approx.)

    外转子

    Single-Phase Brushless DC Motor-Typical Application 单相无刷直流电机-典型应用

    Automotive Parts: Micro Fan   汽车部件:小型风扇

    Home Application: USB Fan, Small Air Fresher, Mini Fan, Mosquito Killer

    家用电器:USB电风扇,小功率空气清新机,微型风扇,灭蚊器

    Medical Apparatus: Medical Pump, Medical Blower, Super-Silence Fan

    医疗器械:医疗泵,鼓风机,医用鼓风机,超静音风扇

    Industry Equipment: Electric Valve, Actuator  工业设备:电动阀门,致动器

    Business Equipment: Printer, Copier, Projector   商业设备:打印机,复印机,投影机



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3020S-S01

    5-14

    12

    6454

    0.127

    3.53

    3024

    0.389

    1.12

    6.65

    0.62

    B3020S-S02

    5-14

    12

    2759

    0.064

    1.20

    1849

    0.108

    0.23

    3.64

    0.19

    B3020S-S03

    5-14

    12

    2900

    0.065

      1.02

    2350

    0.095

    0.25

    4.90

    0.20

    Characteristic: CW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

    特征:单转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

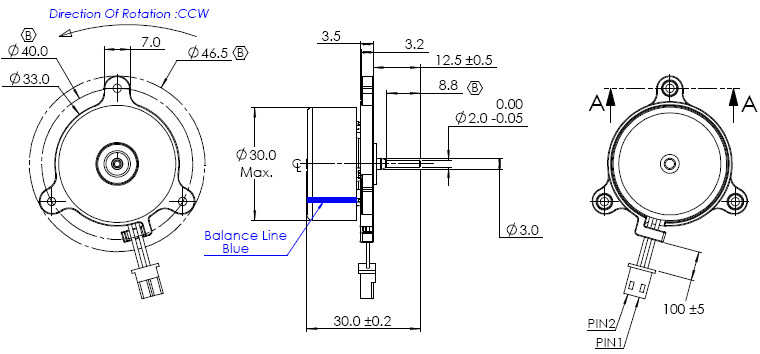

    Outline Drawing 外形图: Unit: Millimeter



    Performance Curve 性能曲线:

    B3020S-S01               12V

       B3020S-S02           12V
