B3040M 直流无刷电机

  • 所属分类:[全部利来w66直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载







    B3040M

    Output Power 输出功率: 1W~10W

    Weight 重量: 95g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automotive Parts: Pump, Valve   汽车部件:泵,阀

    Home Application: Water Pumps, Air Pumps, Small Appliance, Fanner,

    Electric Curtain

    家用电器:水泵,气泵,小家电,风扇,电动窗帘,水泵,气泵

    Medical Apparatus: Medical Pump, Infusion Pump, Surgery Tools,

    Medical Stirrer, Centrifugal Machine

    医疗器械:医疗泵,输液泵,手术器械,搅拌机,离心机

    Industry Equipment: Electric Valve, Actuator, Micro Pumps

    工业设备:阀门,致动器,水泵,气泵,液泵,油泵

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

    商业设备:打印机,复印机,投影机,ATM机,售卖机



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3040M-S01

    5-12

    6

    1992

    0.14

    15

    1464

    0.71

    2.30

    56.54

    0.9

    B3040M-S02

    8-26

    12

    3698

    0.10

    10

    3165

    0.44

    3.32

    69.43

    2.8

    B3040M-S03

    8-26

    12

    3986

    0.14

    30

    2830

    1.24

    8.89

    103.4

    2.8

    B3040M-S04

    8-26

    24

    3615

    0.06

    10

    3139

    0.23

    3.29

    76.02

    2.4

    B3040M-S05

    8-26

    24

    5475

    0.09

    30

    4384

    0.84

    13.77

    150.6

    2.4

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

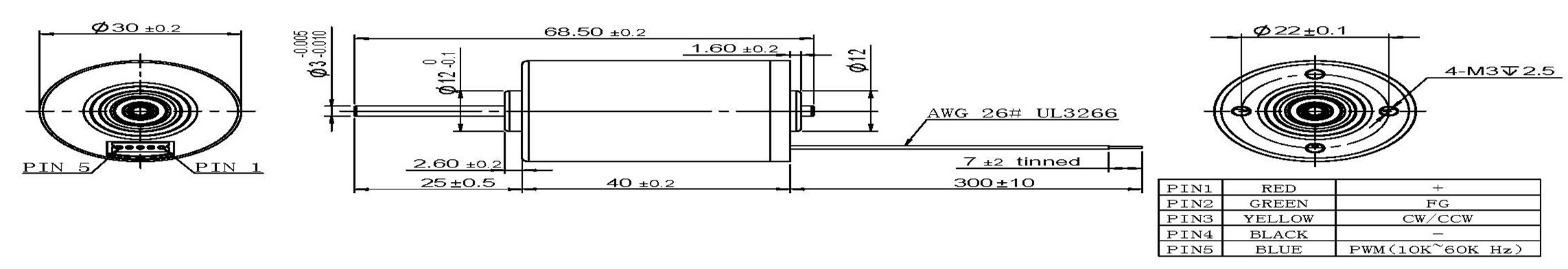

    Outline Drawing 外形图:

    Usable machine screw length 3.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

    B3040M-S02                 12V

     B3040M-S04              24V
