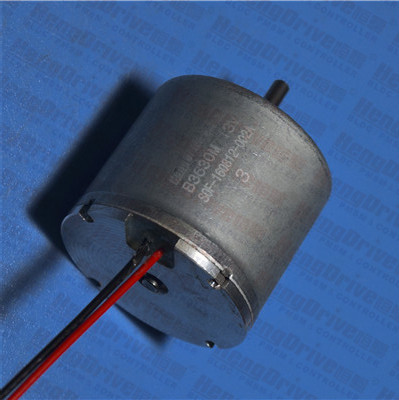

B3632M（单相）

Output Power 输出功率:1-8W

Weight 重量: 110g(Approx.)

Single-Phase Brushless DC Motor-Typical Application （In development）单相直流无刷电机-典型应用（研发中）

Automobiles Parts: Massager Pump of Auto Seat汽车部件：汽车座椅头枕

Home Application: White Goods, Small Appliance, Fanner

家用电器：白色家电，小家电，风扇

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

Centrifugal Machine

医疗器械：医疗泵，手术器械，搅拌机，离心机

Industry Equipment: Electric Valve, Actuator, Micro Pump

工业设备：阀门，致动器，微型泵

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

商业设备：打印机，复印机，投影机，ATM机，售卖机

Personal Care: Electric Shaver, Massager   个人护理：电动须刨，按摩器

Model

型号

Voltage(V) 电压

No Load 空载

Rated Load 额定负载

Stall 堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3632M-S01

8-26

12

6200

0.23

10

4100

0.77

4.31

26

1.8

B3632M-S02

8-26

24

6890

0.13

15

3720

0.57

5.8

32

1.1

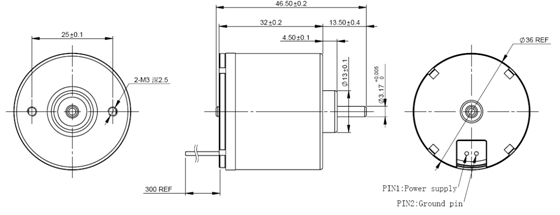

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

B3632M-S01                12V
