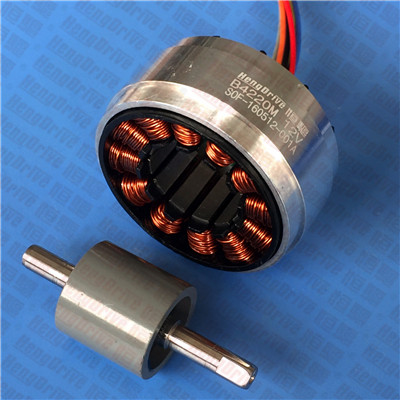

B4220M 直流无刷电机

  • 所属分类:[全部利来w66直流无刷电机]
  • 产品简介:特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B4220M

    Output Power 输出功率: 5W~50W

    Weight 重量: 160g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    With External Driving Controller    含外置驱动控制器

    Specialized For Pumps Of Automotive And Medical Device

    专用于汽车泵、医疗泵



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B4220M-S01

    8-26

    12

    4913

    0.26

    109

    3601

    5.20

    41.00

    407.60

    18.8

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

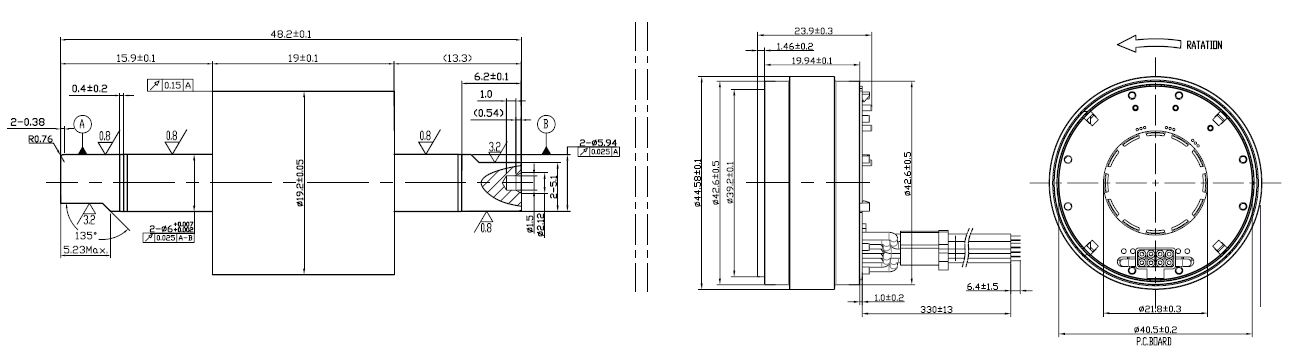

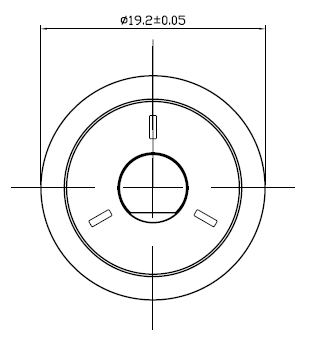

    Outline Drawing 外形图:

    Usable machine screw length 4.0mm max. from motor mounting surface

    Unit: Millimeter

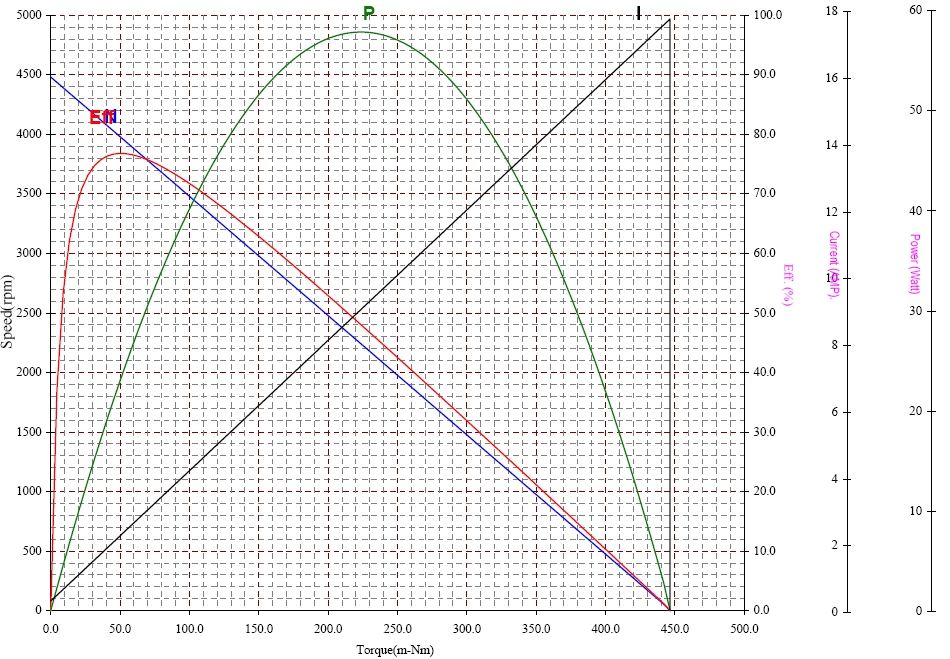

    Performance Curve 性能曲线:

    B4220M-S01                 12V
