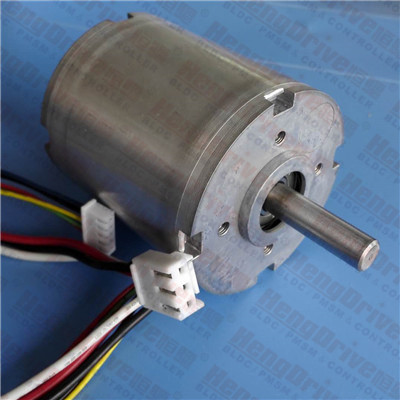

B5662M 直流无刷电机

  • 所属分类:[全部利来w66直流无刷电机]
  • 产品简介:特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命3000-15000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B5662M

    Output Power 输出功率: 35W~200W

    Weight 重量: 385g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    With External Driving Controller    含外置驱动控制器

    Medical Apparatus: Specialized For Oxygenator Pump

    医疗器械:专用于制氧机泵

    Automotive Parts: Air Pump, Water Pump, Oil Pump

    汽车部件:气泵,水泵,机油泵

    Home Application: Air Pump, Water Pump   家用电器:气泵,水泵


    Model
    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B5662M-S01
    8-14
    12
    2803
    0.58
    280
    2120
    6.93
    62.16
    1149
    10
    B5662M-S02
    8-26
    18
    2625
    0.36
    500
    1434
    7.45
    75.10
    1102
    10
    B5662M-S03
    8-26
    24
    4033
    0.41
    400
    3084
    6.90
    129.2
    1700
    10

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs

    特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命3000-15000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

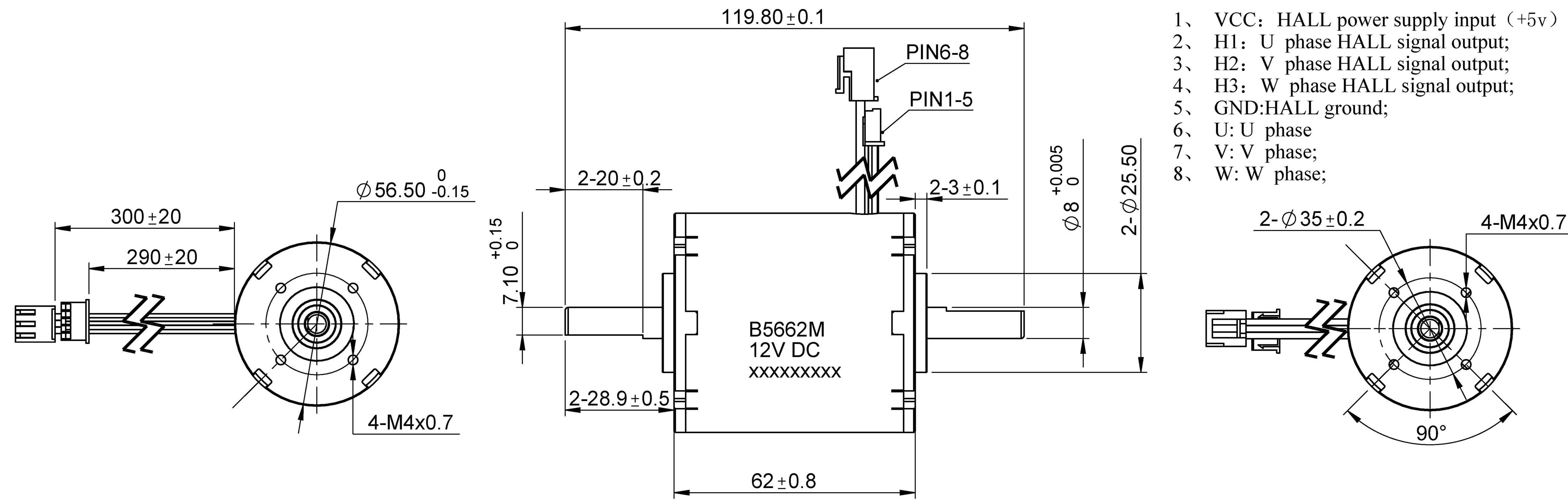

    Outline Drawing 外形图:

    Usable machine screw length 6.0mm max from motor mounting surface                                 Unit: Millimeter

    Performance Curve 性能曲线:

    B5662M-S02                18V

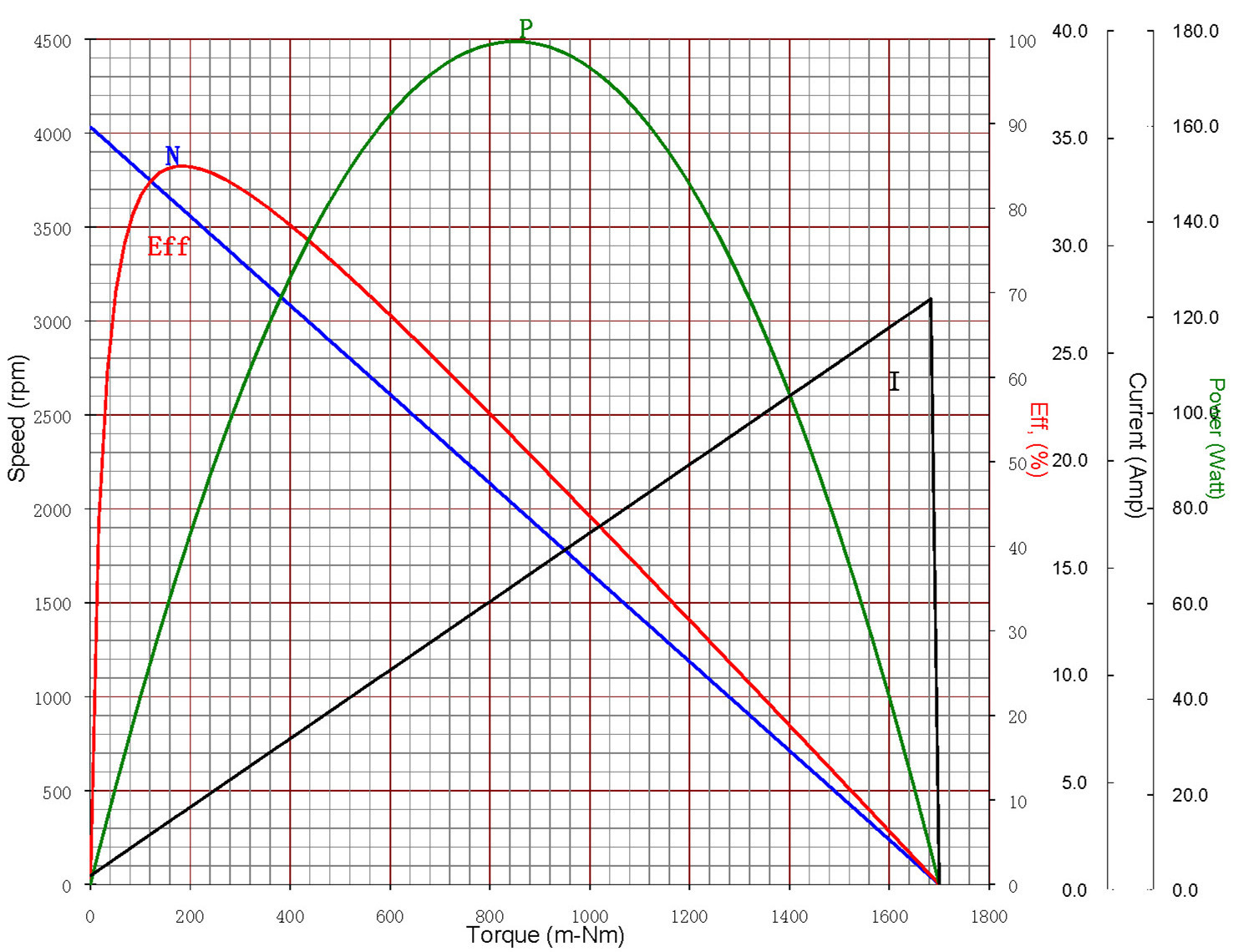

    B5662M-S03                 24V
