B9240S外转子直流无刷电机

  • 所属分类:[全部利来w66直流无刷电机]
  • 产品简介:特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载





     B9240S产品图

    B9240S

    Output Power 输出功率50W~450W

    Weight 重量:500g(Approx.)

    Directly Drive Brushless DC Motor (DD BLDC)-Typical ApplicationIn development直驱无刷直流电机-典型应用(研发中

    Automobiles Parts: Auto Pumps, Auto Air Conditioning Compressor

    汽车部件:汽车泵,汽车空调压缩机

    Business Equipments: Electric Joint, Underwater Propeller, Electric Scooter

    商业设备:电动关节,水下螺旋桨,电动滑板车

    Others: Direct Drive Rotating PTZ(pan-tilt-zoom)

    其它:直驱旋转云台



    Model

    型号

    (DC Motor直流马达)

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B9240S-S01

    12-32

    29

    3602

    2.13

    1.1

    2583

    15.57

    297.5

    3.9

    45

    B9240S-S01

    12-32

    25

    1512

    0.69

    1.0

    1381

    6.544

    144.65

    11

    68

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs   特征:双转向,信号功能,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

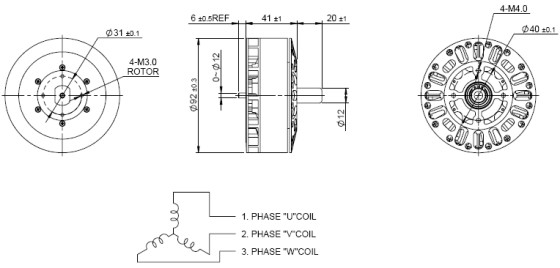

    Outline Drawing 外形图:

     B9240S产品外形图

     Usable machine screw length 4.0mm max. from motor mounting surface Unit: Millimeter





    Performance Curve 性能曲线:

     B9240S-S01 29V

         B9240S-S02 25V

    B9240S -S01性能曲线图        B9240S -S02性能曲线图
