D1723G有刷直流减速电机



    D1723G产品图

    D1723G

    Output Power 输出功率0.1W~2W

    Weight 重量60g (Approx.)

    Brush DC Gear Motor-Typical Application有刷直流减速电机-典型应用

    Home Application: Kitchen Appliance, Electric Window & Curtain,

    Small Household Appliances, Portable Equipment

    家用电器:厨房电器,电动门窗,小家电,便携式器材

    Industry Facility: Transmission Equipment, Gear System, Actuator

    工业设备:传动机械,齿轮系统,致动器

    Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor

    电控设备:电动阀门,小型转换器,灯光调节器

    Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine

    商业设备:电动门禁,银行设施,ATM机,售卖机

    Personal Care: Massager, Stroker, Vibrator

    个人护理:按摩器,摩挲器,振动器

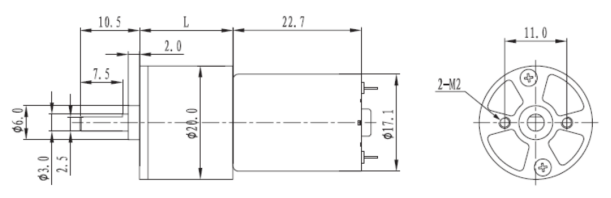

    Outline Drawing 外形图:

    D1723G外形图

    Torque & Speed List: 力矩和转速列表

    Reduction Ratio减速比

    5.8

    13.8

    19.1

    33

    40

    79.6

    84

    175

    191

    365

    458.6

    764

    1100

    2641

    No load rpm空载转速

    950

    390

    280

    165

    135

    67

    64

    31

    28

    15

    12

    7

    5

    2

    Rated load rpm额定转速

    670

    280

    200

    120

    95

    49

    46

    22

    20

    10.5

    8.5

    5

    4

    2

    Rated Tor. Kgf-cm额定力矩

    0.02

    0.05

    0.06

    0.105

    0.12

    0.235

    0.22

    0.42

    0.50

    0.78

    1.050

    1.40

    2.00

    2.00

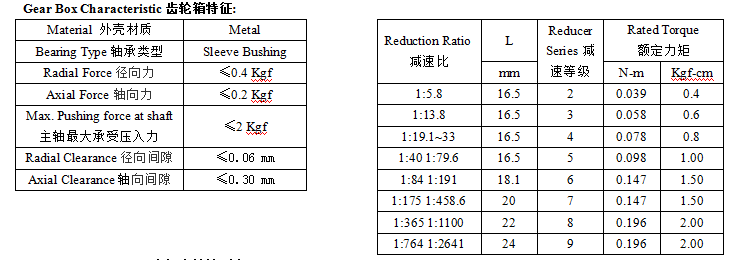

    D1723G齿轮箱特征



    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。
