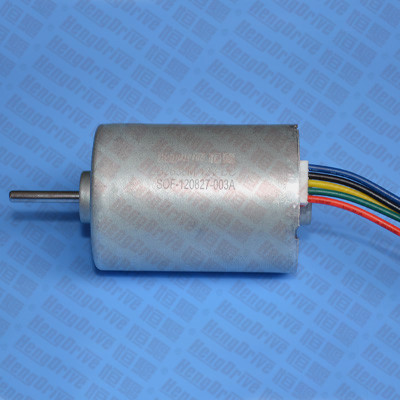

B2838M

Output Power 输出功率: 1W~30W

Weight 重量: 75g (Approx.)

Brushless DC Motor-Typical Application 直流无刷电机-典型应用

Automotive Parts: Pump, Valve   汽车部件：泵, 阀

Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

家用电器：白色家电，小家电，电风扇，电动窗帘

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools,

Medical Stirrer, Centrifugal Machine

医疗器械：医疗泵，血压计，手术器械，搅拌机，离心机

Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump,

Water Pump,Vacuum Pump

电动工具：电动阀门，手持电批，气泵，水泵，真空泵

Business Equipment: Printer, Copier, Projector, Scanner,

Cash Register

商业设备：打印机，复印机，投影机，扫描仪，点钞机

Personal Care: Hair Dryer, Electric Shaver, Massager 个人护理：风筒，电动须刨，按摩器

Model

型号

Voltage(V) 电压

No Load 空载

Rated Load 额定负载

Stall堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B2838M-S01

6-12

7.4

4400

0.15

7.0

4100

0.68

3.0

38.0

1.6

B2838M-S02

8-26

12

3900

0.09

12.0

3200

0.58

4.1

69.4

1.6

B2838M-S03

8-26

24

7640

0.15

18.0

4700

0.9

9.0

48.0

2.50

B2838M-S04

8-26

24

9400

0.18

24.0

5800

1.38

14.6

60.0

2.50

B2838M-S05

8-26

24

16000

0.30

20.0

13000

1.75

27.4

40.0

2.50

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

Usable machine screw length 3.0mm max. from motor mounting surface

Unit: Millimeter

  B2838M-S02               12V

B2838M-S04               24V
