B0716M无刷直流电机

  • 所属分类:[全部利来w66直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命3000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B0716M

    Output Power 输出功率: 0.01W~0.3W

    Weight重量: 2g (Approx.)

    Slotless BLDC Motor-Typical Application (In development)

    无槽无刷空心杯直流电机-典型应用(研发中

    Medical Apparatus: Micro Pump, Micro Valve, Micro Actuator

    医疗器械:微型泵,微型阀门,微型致动器

    Personal Care: Micro Pump, Vibration, Massager

    个人护理:微型泵,震动器,按摩器

    Business & Industry Equipment: Micro Actuator

    工商设备:微型致动器



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B0716M-S01

    2-5

    3

    12146

    0.51

    0.2

    9538

    0.19

    0.2

    0.93

    0.33

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

    特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命3000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

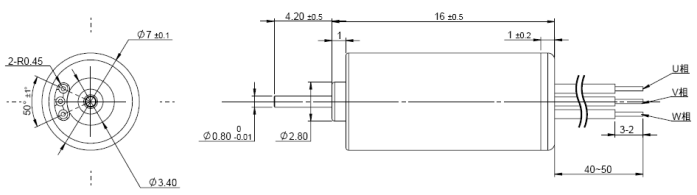

    Outline Drawing 外形图:

    Usable machine screw length 3.0mm max. from motor mounting surface

    Unit: Millimeter

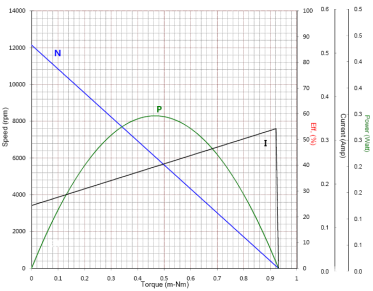

    Performance Curve 性能曲线:

    B0716M-S01    6V
