B9080M

Output Power 输出功率: 150W~600W

Weight 重量: 1200g (Approx.)

Brushless DC Motor-Typical Application 直流无刷电机-典型应用

Automobiles Parts: Auto Pumps, Fan, Electro Carrier, Auto Actuator

汽车部件：汽车泵，风机，电动小车，汽车致动器

Home Application: Electric Window, Electric Door, Blender, Shredder,

Meat Grinder

家用电器：电动窗，电动门，搅拌机，绞肉机，粉碎机

Medical Apparatus: Medical Bed, Electric Wheel Chair, Surgery Tools,

Operating Table, Centrifugal Machine

医疗器械：医疗床，电动轮椅，手术器械，手术台，离心机

Power Tools: Screwdriver, Drill, Air Compressor

电动工具：电动螺丝批，电钻，气体压缩机

Industry Equipment: Power Machine, Transmission gear equipment

工业设备：动力、传动设备

Personal Life Product: Massager, Sport Apparatus 个人生活产品：按摩器，运动器材

Model

型号

Voltage(V) 电压

No Load 空载

Rated Load 额定负载

Stall 堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B9080M-S01

8-26

24

3380

0.74

500

2820

7.75

147.5

3002

30

B9080M-S02

8-26

24

2901

0.73

1000

2261

11.38

236.8

4501

30

B9080M-S03

8-26

24

5974

1.03

800

4782

20.73

400.6

4009

50

B9080M-S04

8-26

24

5986

1.03

1300

4412

33.05

600.6

4943

50

B9080M-S05

8-26

24

3400

1.73

1801

2481

26.76

468.1

6664

50

Notice: Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement.

注意：上述规格仅针对特定客户，对于您的特殊要求，可以通过调整绕组、磁场、控制参数和相关机械参数来达到您的不同要求。

Usable machine screw length 8.0mm max. from motor mounting surface

Unit: Millimeter

B9080M-S02                 24V

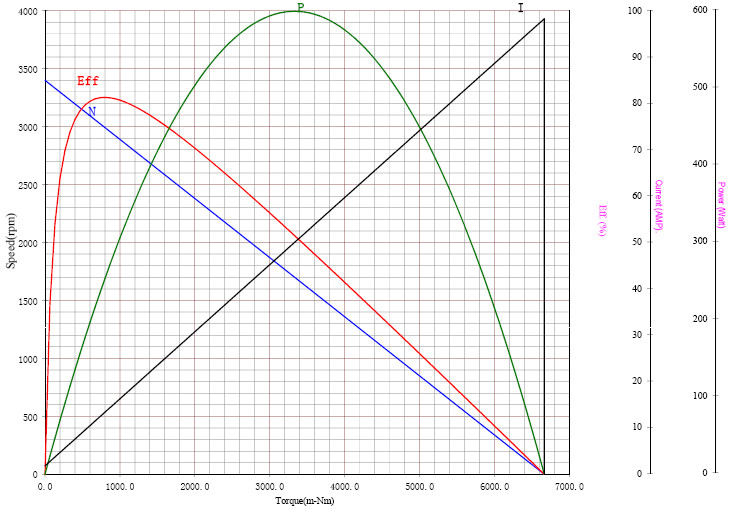

B9080M-S04                 24V
