D2838M直流电机马达

  • 所属分类:[利来w66-DC直流电机]
  • 产品简介:特征:低噪音,低震动,高可靠性
  • 订购热线:400-0755-631
  • 下载资料:资料下载





     D2838M直流电机产品图

    D2838M

    ( DC Motor直流马达)

    Output Power 输出功率1W~40W

    Weight 重量:50g(Approx.)

    DC Motor - Typical Application 直流电机 - 典型应用
    Home Appliance: Hair Dryer, Pump, Cleaning Robotics.
    家用电器:吹风筒、气泵、扫地机器人



    Model

    型号

    (DC Motor直流马达)

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    D2838M-S01

    3~5V 3.7 5800 0.26 15 2900 2.96 4.69 30.3 5.72
    D2838M-S02
    6~12V
    7.4
    5752 0.14 30 3000 2.54 9.52 63.3 5.20
    D2838M-S03
    18~30V
    24 22500 0.22 10.5 19400 1.22 22.2 70.0 6.91

    Characteristic: Low noise, Low Vibration, High Reliability    特征:低噪音,低震动,高可靠性

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

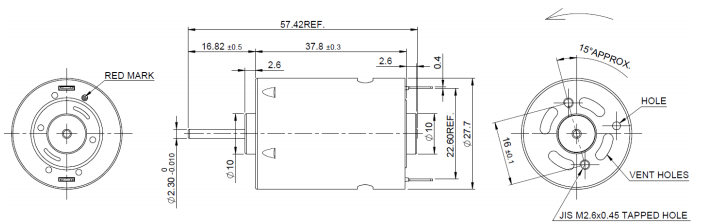

    Outline Drawing 外形图:

    D2838M外形图

     Usable machine screw length 3mm max. from motor mounting surface Unit: Millimeter

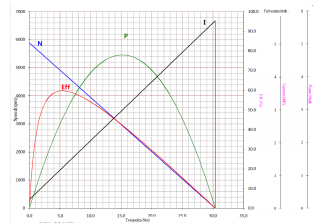

    Performance Curve 性能曲线:

    D2838M-S01     3.7V





     D2838M曲线图
