D3885M

( DC Motor直流马达)

Output Power 输出功率: 10W~34W

Weight 重量:380g(Approx.)

DC Motor – Typical Application 直流电机-典型应用

With Hall PCBA

含内置霍尔接线板

Automotive Parts: Seat Slide Rail

汽车部件：座椅滑轨

Model

型号

(DC Motor直流马达)

Voltage(V) 电压

No Load 空载

Rated Load 额定负载

Stall 堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

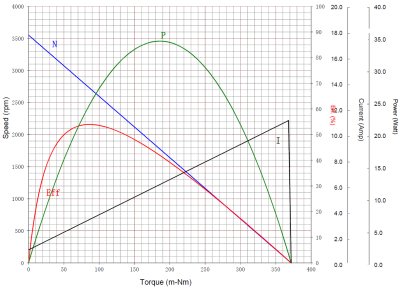

D3885M-S01

9~16

13.5

3551

1.020

100

2596

3.75

27.2

371

11.2

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。
